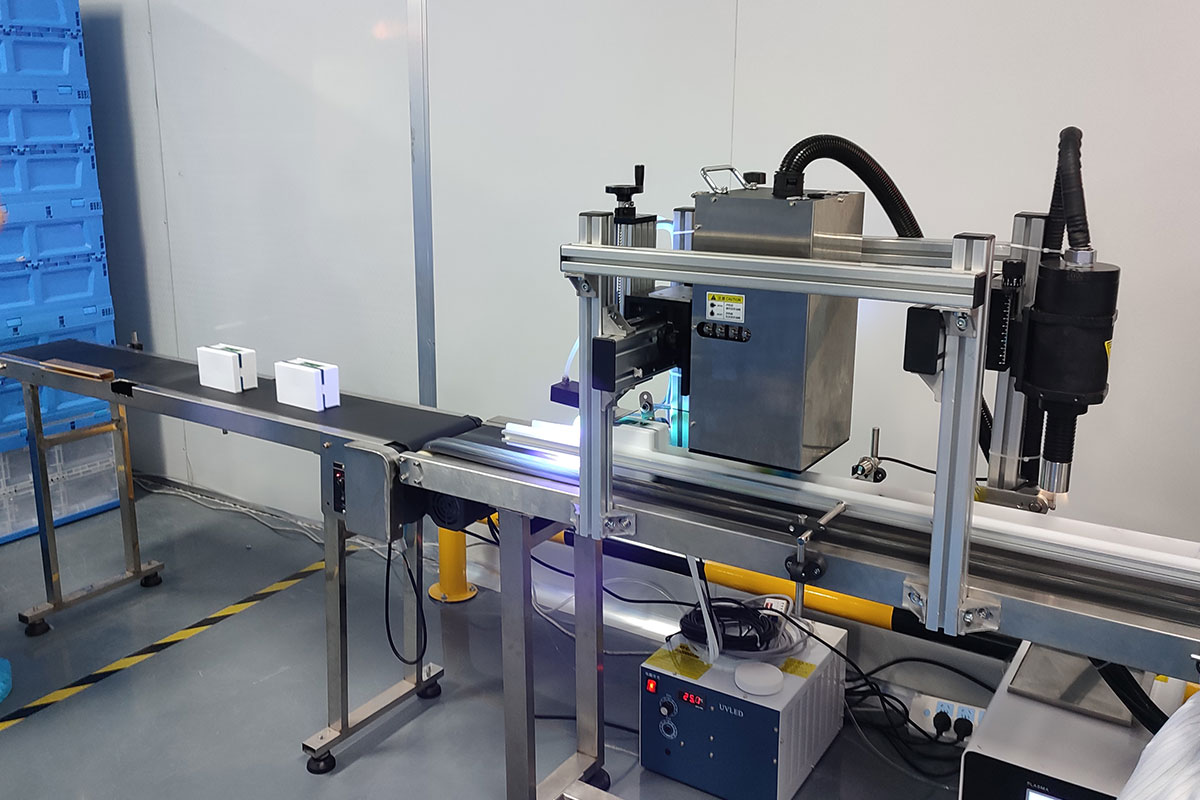

UV Piezo Inkjet Printer is LIONTEC’s high-precision digital deposition technology built for advanced industrial functional printing processes.
Discover the advanced technology of UV Piezo inkjet printer, offering unparalleled precision and efficiency for various industrial applications.
Our UV Piezo inkjet printers are a cost-effective solution to fast and contactless marking of your products and packaging!
• Compared with traditional inkjet printer,thephysical resolution of piezo inkjet printers can reach upto 600DPl,and other resolutions such as 180,300,and360 are available.
• Whether it is oil-based ink for permeable surfacematerials or UV-curable ink for non-permeable surfacematerials,because it does not contain solvents, undernormal maintenance,even if it is stopped for a longtime.the nozzleis not easv to be blocked.
• The printing format of a single printhead is32.4mm，54mm，71.8mm,etc.，and the printingspeed is not affected by the adjustment of thenumber of content ines and height, and a largerprinting format can be obtained through the multi-head seamless splicing technology.
• Based on current piezo nozzle technology.the highest ignition frequency can reach 100K,singlehead printing speed can reach more than200 meters/minute under 600*600DPI.
Model |
LT-U1000 |
LT-U1800 |
LT-U2000 |
LT-U3200 |
LT-U4000C |
Printhead type |
Industrial piezoelectric printhead | ||||
Printhead life |
100 billion actuations per printhead | ||||
Printing height |
32.4mm | 32.4mm | 54.1mm | 72mm | 54.1mm |
Nozzle QTY |
384 | 384 | 1280 | 1020 | 1280 |
Ink dot size |
3pl,6pl,9pl | 7pl,14pl,21pl | 7pl,14pl,21pl | 12pl,35pl,50pl | 7pl,14pl,21pl |
Printing speed (Material/resolution/ environment/platformand other factors) |
Max. 50 m/min | Max. 100 m/min | Max. 180 m/min | Max. 70 m/min | Max. 50 m/min |
Physical resolution |
Lengthways printing precision300DPI
Crosswise printing precision200-3200DPI |
Lengthways printing precision 300/600DPI
Crosswise printing precision200-3200DPI |
|||
Ink color |
Black/white/yellow/red/blue all single color | CMYK | |||
Distance from printhead to material |
0.5-5mm （0.5-2mm optimal） | ||||
Printing content |
Multi-language system supports variable and fixed text, numbers, barcode, QR code, electronic regulatory code, traceability code, pictures, time and date, lot numbers, serial numbers, databases, etc. |
||||
Printing direction |
Vertical/Horizontal printing | Vertical printing | |||
Advantage |
1、Online high precision, high speed printing 2、Exquisite small body big energy 3、UV environmental protection ink | ||||
Controller |
12.1 inch Industrial HD touch screen, capacitive multi-touch | ||||
SDK |
Provide interface to support second development | ||||
Data interface |
USB2.0/3.0、GigE、RS-232、RS-485 | ||||
Power requirement |
AC220V/50HZ | ||||
Printer power |
Maximum power consumption 200w | ||||
Ambient temperature |
Temperature: 0℃-45℃ (Best 10℃-32℃),
Humidity: 15%-75%RH No condensation |
||||
IP Grade |
IP55 | ||||
Protection requirements |
Be well grounded | ||||
Weight |
60kg | ||||
Size |
1390*480*440mm | ||||
