For production enterprises newly introducing UV Coding Machines, operators need time to adapt when switching from traditional marking equipment to UV coding technology. Based on years of service experience, LIONTEC summarizes typical early-stage errors of UV Coding Machines and delivers systematic solutions to avoid faults, supporting stable and efficient coding production for manufacturers.Many factories underestimate the operational differences between piezo UV inkjet systems and conventional CIJ printers. Minor misoperations can trigger frequent maintenance demands, disrupt production schedules and raise overall operating costs.

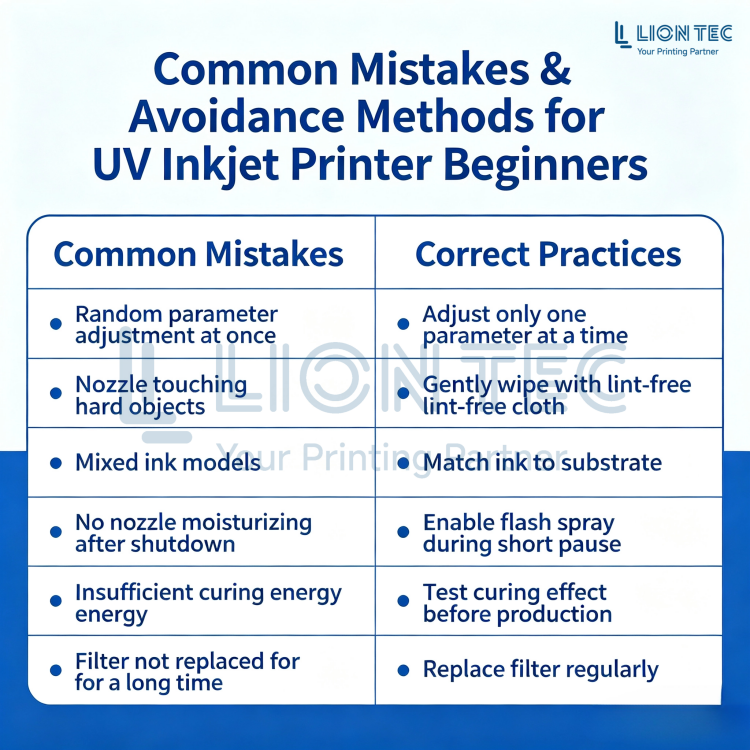

Common Errors
1. Incorrect Parameter Commissioning
Improper settings of printhead height, production line speed, UV curing lamp power and negative pressure parameters on UV Coding Machines lead to blurry prints, unrecognizable QR codes, sticky and peeling ink.
2. Misuse of Consumables
Mixing different inks, adopting non-original cleaning solutions and improper storage of consumables will cause printhead clogging and ink circuit contamination of UV Coding Machines.
3. Mistakes in Daily Maintenance & Power On/Off Operations
Failure to moisturize printheads during shutdown, rough wiping of printheads, irregular power cut and neglected environmental control will shorten the service life of printheads on UV Coding Machines and cause frequent downtime disrupting production line operation.
Prevention Methods
1. Standardize Power-On & Power-Off Sequence
Power-on: Start the conveyor belt first to avoid prolonged stationary UV light irradiation on one spot and prevent belt burning, then activate the UV curing lamp and plasma treatment unit of UV Coding Machines.
Power-off: Turn off the curing lamp and plasma unit first. Keep the conveyor running for at least 1 minute for physical heat dissipation before cutting off conveyor power. Before power disconnection, click to stop negative pressure on the software interface. Cut off the main power supply only after the pipeline system completes pressure relief.
2. Strict Printhead Protection
Shutdown protection: Cover the light shield immediately when UV Coding Machines are idle to block UV radiation on nozzles. If shutdown lasts more than 3 days, apply deep moisturizing treatment with special moisturizing caps or sealing gaskets.
Working posture: Except dedicated side-spray models, standard UV Coding Machines must operate with printheads vertically downward. Tilting or horizontal placement is forbidden, as ink backflow may easily occur and damage internal printhead components.
3. Standardized Cleaning & Consumable Usage
Cleaning tools: Always use original dust-free cloth and official cleaning fluid for printhead cleaning of UV Coding Machines. Never touch the nozzle plate with sharp or hard objects such as blades or needles.
Consumable rule: Only use certified UV ink and consumables supplied by LIONTEC. Inks of different batches or non-certified ink may trigger unpredictable chemical reactions, clog ink filters and even damage printheads of UV Coding Machines.
4. Environmental & Electrical Assurance
Ensure reliable earthing for UV Coding Machines. UV coding printers are static-sensitive equipment; static interference is a common hidden cause of system freeze and garbled codes. Inspect and replace ink filters regularly to maintain cleanliness of the ink circuit system.Production workshops with low humidity tend to generate more static electricity. We recommend installing static elimination equipment near the coding station to create a stable working environment for UV Coding Machines.
Proper daily operation and maintenance can greatly extend the service lifespan of printheads, which are the core consumable of UV Coding Machines. Standardized operating habits help factories cut spare parts expenses and reduce unexpected production downtime.
Conclusion
We understand that the value of UV Coding Machines lies not only in the equipment itself, but also in consistent, stable and high-quality output. By accurately identifying and avoiding the above common errors for new operators, staff can quickly master the essence of UV coding technology, enabling UV Coding Machines to become reliable empowering partners on enterprise production lines.
