UV Inkjet Coder From Zero to One: Complete Beginner Operation Guide

Within the industrial marking sector, UV Inkjet Coders feature strong adhesion, low VOC emissions and compatibility with diverse materials, gradually becoming core equipment for product traceability and marking in electronics, food, pharmaceutical and other industries. Faced with stringent production efficiency and environmental requirements, how to operate a UV Inkjet Coder in a standardized manner from scratch is a key challenge for many manufacturers and operators. LIONTEC offers you a complete beginner’s guide.

UV Inkjet Coder Practical Operation Guide

Step 1: Power On & Pre-operation Inspection

1. Connect power supply, turn on the compressor and negative pressure system.
2. Startup sequence: Start the conveyor belt first (never expose the printhead directly to curing light), then activate the UV curing lamp and plasma treater.
3. Perform priming and cleaning. Wipe the printhead surface with dedicated lint-free cloth and non-woven fabric together with cleaning fluid to remove accumulated ink.

Step 2: Testing & Parameter Configuration

1. Print the nozzle test pattern via control software. Inspect ink lines under a magnifying glass or camera. Run printhead cleaning cycles repeatedly until no missing lines appear.

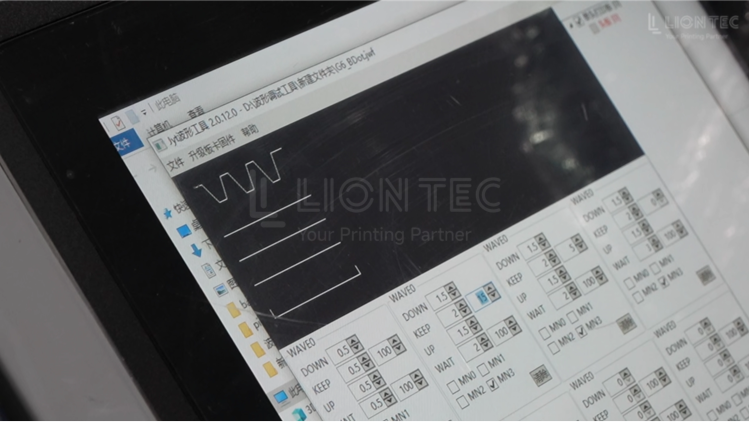

2. Set printing speed, drop volume and UV lamp power in the inkjet control software. Note: Adjust drop volume according to substrate surface energy; match lamp power to ink volume to guarantee full curing.

Step 3: In-production Monitoring & Basic Troubleshooting

1. During production, perform automatic spitting every 2–4 hours to keep nozzles moist.
2. Blurred prints / scattered ink droplets: Check for slight nozzle clogging or excessive printing distance. Ensure the equipment is properly grounded to eliminate static interference.
3. Printhead ink leakage: Usually caused by improper negative pressure parameters, poor filter sealing or faulty solenoid valves. Stop production immediately for inspection; do not disassemble the unit without authorization.

Step 4: Standard Shutdown & Maintenance

1. Shutdown sequence: Turn off the UV curing lamp and plasma treater first. Keep the conveyor running for at least 1 minute for heat dissipation before cutting off conveyor power to avoid belt damage from high temperature.
2. Click “Stop Negative Pressure” on the software and wait for pipeline pressure relief to complete.
3. Clean dust from the machine frame and guide rails with lint-free cloth. Cover the printhead shield to block dust and UV light. If the UV Inkjet Coder will be idle for more than 3 days, implement sealed moisturizing treatment for the printhead.

Advantages of Standardized Operating Procedures

1. Reduce equipment failures and extend printhead service life. Standardize startup warm-up, daily cleaning and shutdown moisturizing procedures to lower risks of printhead clogging and deflection printing. This greatly cuts printhead replacement costs and reduces production line downtime for maintenance of your UV Inkjet Coder.
2. Stabilize printing quality and minimize defective output. Unify debugging standards and test-print verification processes to ensure consistent legibility and adhesion of texts and QR codes. Prevent defects such as blurry markings, incomplete curing and smudging, and reduce raw material waste.
3. Cut staff training costs and enable smooth personnel handover. Standardized operation documents serve as training materials for new operators. Knowledge gaps during staff turnover are avoided; new operators can independently operate the UV Inkjet Coder following defined workflows.
4. Compatible with automated production lines and meet traceability compliance requirements. Stable and standardized printing ensures consistent readability of unique serial codes, UDI codes and batch numbers. It helps enterprises pass customer factory audits and industry regulatory reviews, and supports data integration with MES production systems.

Conclusion

For long-term stable operation of the UV Inkjet Coder, the core lies in establishing standardized operating routines from scratch. Many equipment failures stem not from inherent hardware defects, but from missing operating procedures and inadequate daily maintenance.

LIONTEC specializes in industrial UV inkjet marking solutions. We provide UV Inkjet Coder operation training, on-site commissioning and customized coding solutions for customers across various industries. Please feel free to contact us if you require equipment selection, production line renovation or technical consultation services.
